PUF Wall Panel

PUF Wall Panel

  • Product Type: PUF Sandwich Wall Panel
  • Full Form:Polyurethane Foam
  • Core Material: Rigid Polyurethane Foam
  • Density: 38-42 kg/m³
  • Thermal Conductivity: 0.022-0.024 W/m·K
  • Insulation Performance: Very Good
  • Fire Resistance B2 / B3
  • Service Temperature -40°C to +80°C
  • Panel Thickness30 mm to 200 mm
  • Panel Width: 1000 mm
  • Panel Length:Up to 12-15 meters (Site Dependent)
  • Top Sheet: PPGI / GI / Aluminium / Stainless Steel
  • Bottom Sheet: PPGI / GI / Aluminium / Foil
  • Sheet Thickness: 0.35 mm - 0.60 mm
  • Weight (50mm Panel) 10-12 kg/m²
  • Profile: Plain / Ribbed
  • Applications: Factories, Warehouses, Industrial Sheds
50mm PUF Wall Panel

50mm PUF Wall Panel

  • Product Type: PUF Sandwich Wall Panel
  • Full Form:Polyurethane Foam
  • Core Material: Rigid Polyurethane Foam
  • Density: 38-42 kg/m³
  • Thermal Conductivity: 0.022-0.024 W/m·K
  • Insulation Performance: Very Good
  • Fire Resistance B2 / B3
  • Service Temperature -40°C to +80°C
  • Panel Thickness50 mm
  • Panel Width: 1000 mm
  • Panel Length:Up to 12-15 meters (Site Dependent)
  • Top Sheet: PPGI / GI / Aluminium / Stainless Steel
  • Bottom Sheet: PPGI / GI / Aluminium / Foil
  • Sheet Thickness: 0.35 mm - 0.60 mm
  • Weight (50mm Panel) 10-12 kg/m²
  • Profile: Plain / Ribbed
  • Applications: Factories, Warehouses, Industrial Sheds
75mm PUF Wall Panel

75mm PUF Wall Panel

  • Product Type: PUF Sandwich Wall Panel
  • Full Form:Polyurethane Foam
  • Core Material: Rigid Polyurethane Foam
  • Density: 38-42 kg/m³
  • Thermal Conductivity: 0.022-0.024 W/m·K
  • Insulation Performance: Very Good
  • Fire Resistance B2 / B3
  • Service Temperature -40°C to +80°C
  • Panel Thickness70 mm
  • Panel Width: 1000 mm
  • Panel Length:Up to 12-15 meters (Site Dependent)
  • Top Sheet: PPGI / GI / Aluminium / Stainless Steel
  • Bottom Sheet: PPGI / GI / Aluminium / Foil
  • Sheet Thickness: 0.35 mm - 0.60 mm
  • Weight (50mm Panel) 10-12 kg/m²
  • Profile: Plain / Ribbed
  • Applications: Factories, Warehouses, Industrial Sheds

Introduction

PUF Wall Panels have become the standard walling solution for industrial and commercial construction in India , not because they are the cheapest option, but because they consistently outperform the alternatives on thermal efficiency, installation speed, and long-term maintenance cost. A properly specified PUF wall panel system delivers a finished, insulated wall in a single installation step , eliminating the layered construction required by brick, block, or built-up systems. This page covers the full range of PUF Wall Panels available , standard insulated panels for general industrial use, fire rated panels for regulated environments, and application-specific options for cold storage, clean rooms, and agricultural buildings. Whether you are specifying a factory, a food plant, a cold room, or a pre-engineered building, the right wall panel specification is available here. As a platform connected directly to a leading puf panel manufacturer, we offer accurate specification guidance, competitive pricing, and reliable delivery across India.

GET IN TOUCH WITH US FOR BEST DEALS


Contact Us

How It Works?

📝
Step 1 Share your building type, roof area, panel preference, and project location
🔍
Step 2 Our team confirms the right specification for your application
📄
Step 3 You receive a detailed, itemised quote within 24 working hours
🚚
Step 4 Panels are manufactured and delivered pan India

Puf Wall Panels View All >

Puf Wall Panels

Puf Wall Panels

We offer high-performance PUF Wall Panel solutions designed for insulation, durability, and efficient construction. These panels are manufactured using rigid polyurethane foam and high-quality metal sheets, making them suitable for industrial and commercial wall applications.

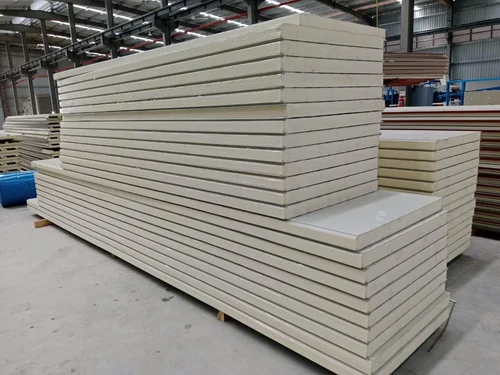

50mm PUF Wall Panel

50mm PUF Wall Panel

Our 50mm PUF Wall Panel solutions are designed to deliver reliable insulation, structural efficiency, and cost-effective performance for industrial and commercial applications. Manufactured using rigid polyurethane foam and high-quality metal sheets, these panels are ideal for projects that require moderate insulation without increasing construction costs or structural load.

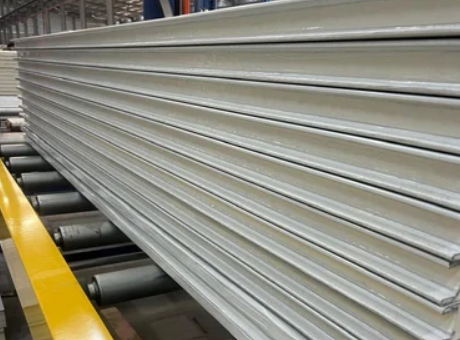

75mm PUF Wall Panel

75mm PUF Wall Panel

We offer 75mm PUF Panel solutions that provide improved insulation and structural performance for a wide range of applications. Designed for projects requiring better temperature control, these panels strike the right balance between thermal efficiency and cost, making them suitable for commercial spaces, industrial units, and modular buildings.
